Premium Clay Board, 12.5 mm
Optimal protection for living and workspaces
This clay panel sets new standards for interior walls in modern architecture. At just 12.5 mm thick, our panel offers 56 dB of sound insulation—twice the performance of conventional 16-mm panels—and creates a very comfortable indoor environment. Weighing only 17 kg, it is easy to install and, thanks to its high material density, is exceptionally sturdy and durable.
Ideal for new construction and renovation, it offers a natural living environment, efficient thermal and sound insulation, and flexible application options—an innovative solution for demanding construction projects.
Technical data & product features

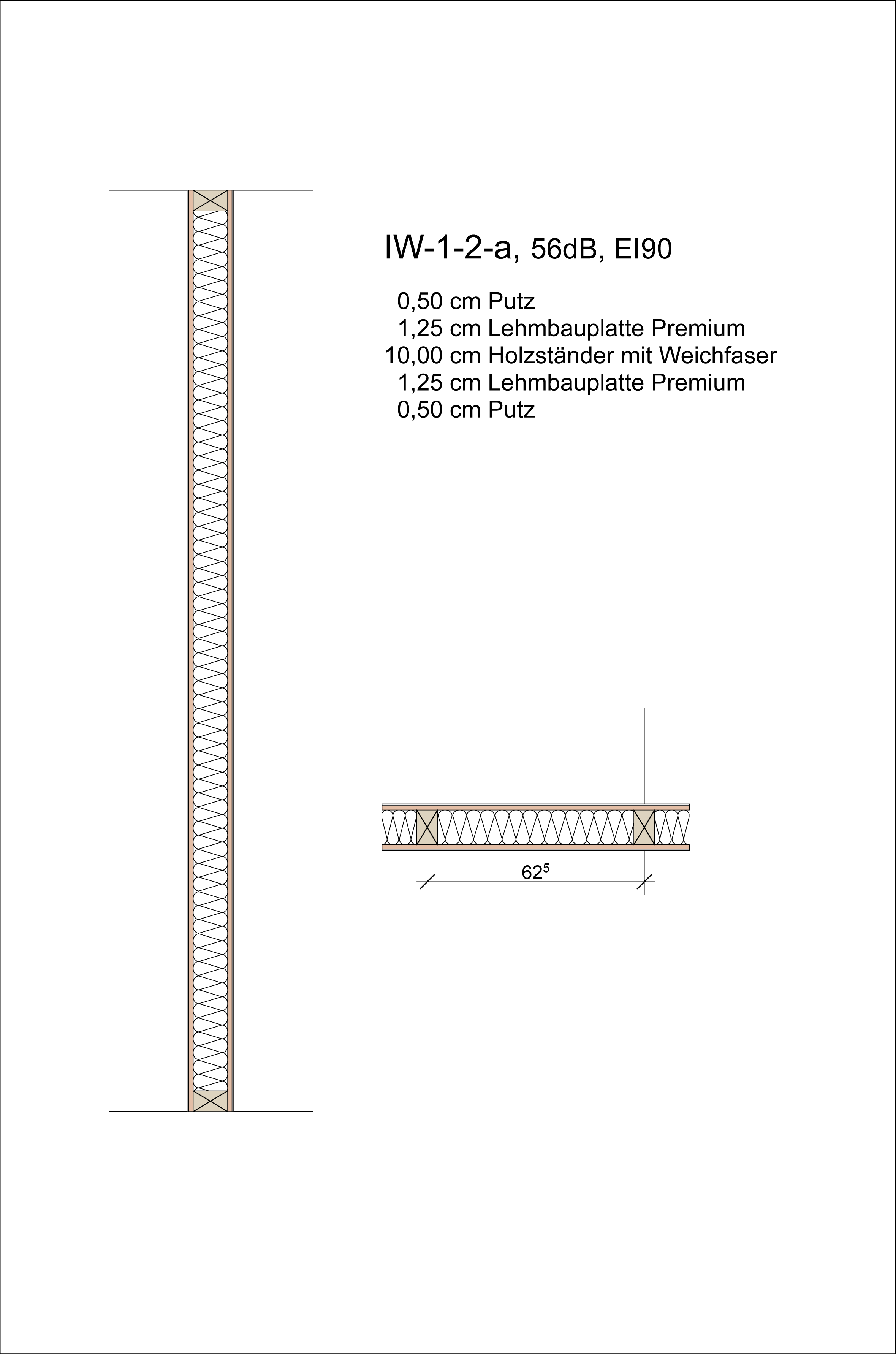

Interior wall

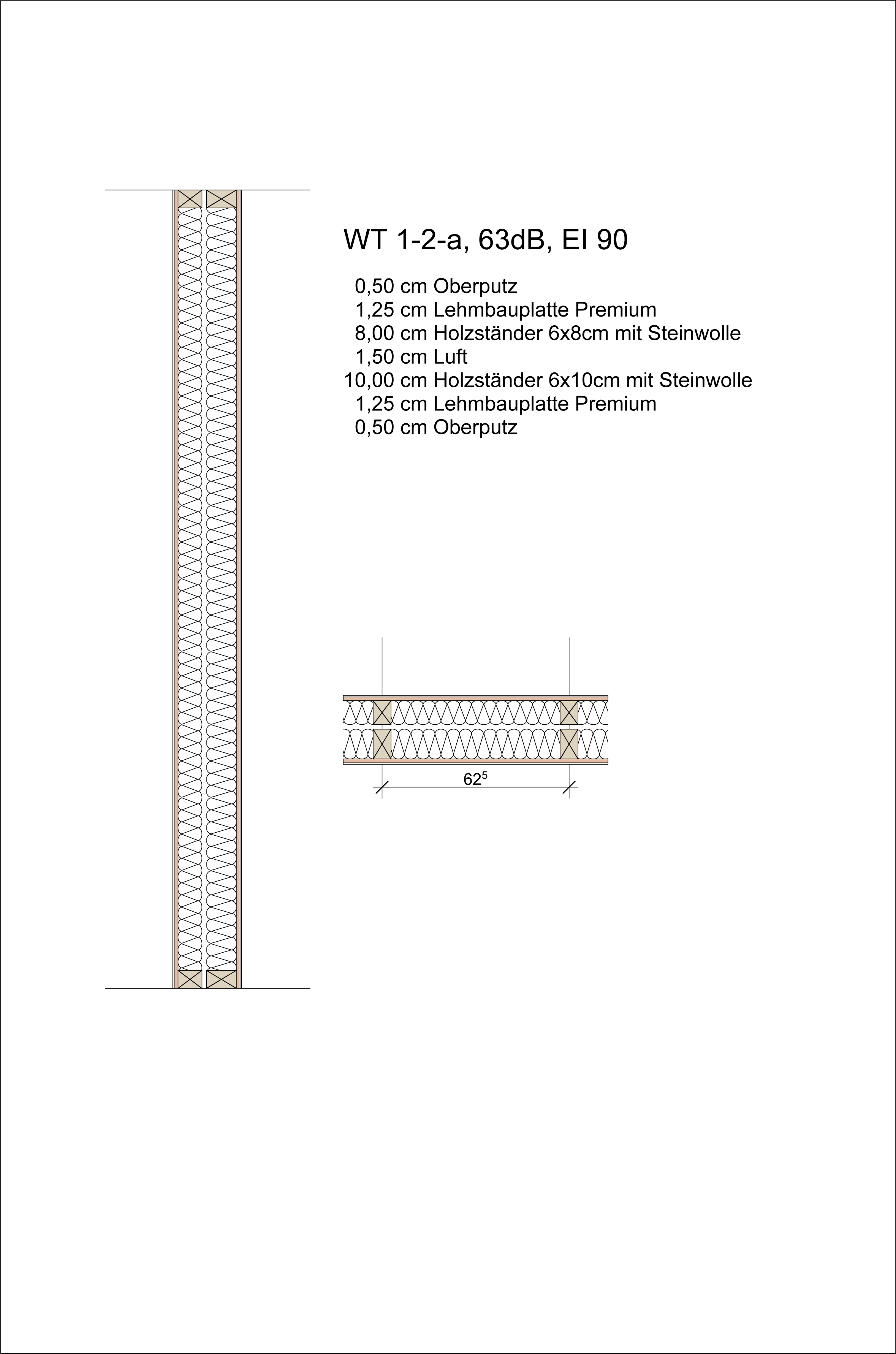

Apartment partition wall

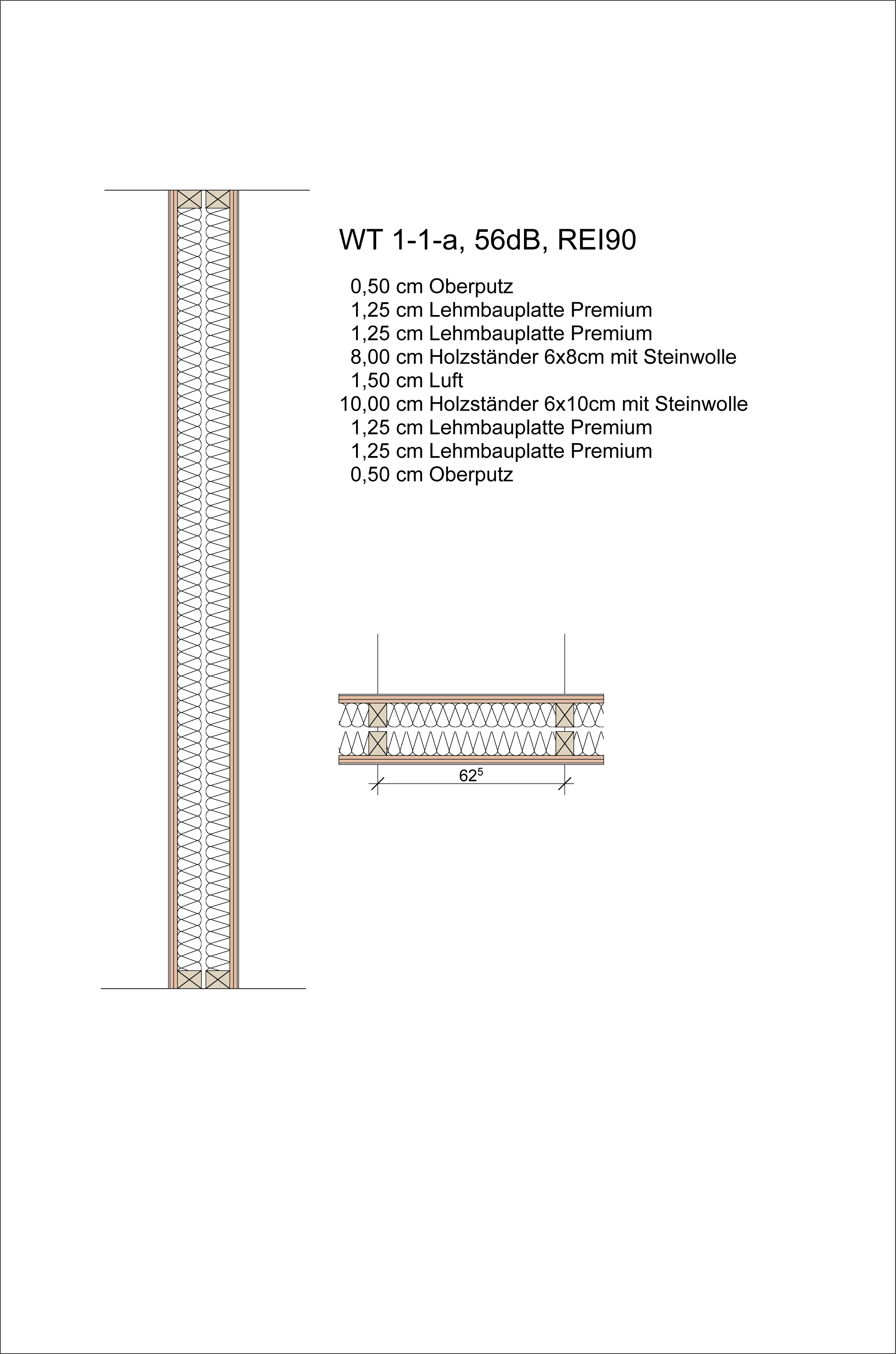

Load-bearing apartment partition wall
Format & Dimensions
| Strength | 12.5 mm (the only clay building board on the market with this thickness) |
| Dimensions | 125 × 62.5 cm (standard dry dimensions) |
| Weight per panel | 17 kg (noticeably easier to work with) |
| Area per panel | 0.781 m² |
| Bulk density | 1,440 kg/m³ |
Building Physics – Heat & Moisture
| Thermal conductivity (λ) | 0.213 W/(m·K) |
| Specific heat capacity | 0.867 kJ/(kg·K) |
| Water vapor sorption class | WS III (≥ 13 g/m² after 1 hour; ≥ 40 g/m² after 6 hours; ≥ 60 g/m² after 12 hours) |
| Water vapor transmission resistance factor (μ) | 15 |
Strength, Fire Safety & Standards
| Surface hardness | increased |
| Flexural strength | Longitudinal: 1.96 N/mm² Transverse: 1.28 N/mm² |
| Surface tensile strength | ≥ 0.1 N/mm² |
| Building material class (fire protection) | B1 (corresponds to approximately C according to EN 13501) |
| standard | DIN 18948:2018-12 |
General product features
| Composition / Reinforcement | Clay with a wood fiber mat |
| Stabilizing admixtures | none |
| Delivery | 60 pieces per pallet ( ) (46.86 m² per pallet) |
| Suggested retail price | 25 CHF per square meter |
Processing and application
The clay drywall panel is easy to handle and maintains its dimensions very well during installation. The clay panels are mounted directly onto the underlying wood using screws or a staple gun.
